Wuxi FSK Transmission Bearing Co., Ltd fskbearing@hotmail.com 86-510-82713083
Rincian Produk
Tempat asal: Cina
Nama merek: ZWZ / KOYO / NSK / FAG / FSK / OEM
Sertifikasi: ISO9001-2000 / SGS / BV / CE / IAF
Nomor model: 314190
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 1 pcs-5pcs
Harga: 0.1-20USD
Kemasan rincian: 1) COLORED SINGLE BOX PACKING + KOTAK KARTON PACKING + PALLETS, 2) PLASTIK TABUNG PACKING / KRAFT PA
Waktu pengiriman: 3-7 Hari Setelah Deposit
Syarat-syarat pembayaran: Deposit 30%, Saldo Setelah BL Copy
Menyediakan kemampuan: 100000pcs/bulan
Model No: |
314190 |
Ukuran: |
160mm × 230mm × 130mm |
Berat badan: |
17kg |
Bantalan nama: |
Rolling Mill Bearing |
Baris: |
Empat baris |
Model lainnya: |
FC3246130 |
Model No: |
314190 |
Ukuran: |
160mm × 230mm × 130mm |
Berat badan: |
17kg |
Bantalan nama: |
Rolling Mill Bearing |
Baris: |
Empat baris |
Model lainnya: |
FC3246130 |
314190 Be arin g Drawing dan Spesifikasi:
| Nomor model | 314190 |
| Bagian nama | Bantalan Rol Silinder |
| Merek | ZWZ / KOYO / NSK / FAG / FSK / OEM |
| Peringkat presisi | ABEC-3 / ABEC-5 |
| Baris | Empat baris |
| Dimensi (mm) (d * D * b) | 160mm × 230mm × 130mm |
| Berat / Massa (KG) | 17kg |
| Kode HS | 8482500000 |
| Tampilkan Negara Asli | CINA |

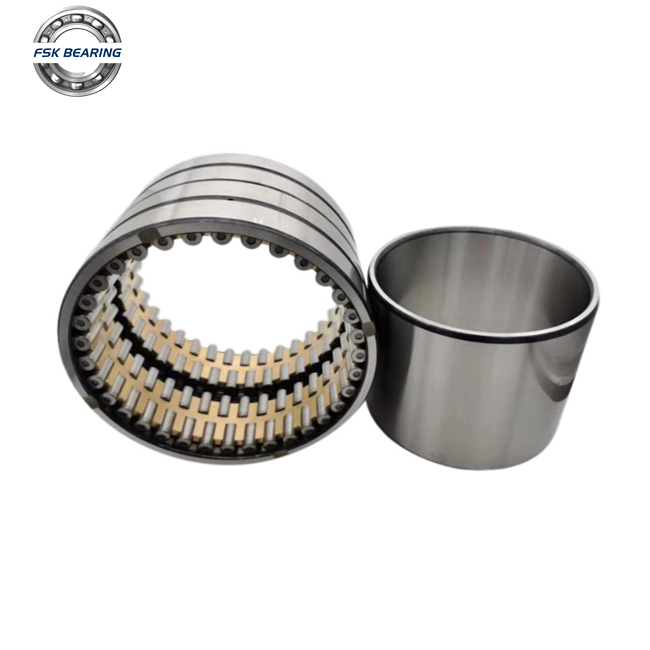

Gambar rinci bantalan:
Bagian Daftar Bantalan Rol Silinder Empat Baris Kami
| Ukuran (mm) | SpeedRPM Terbatas) | Bantalan no. | OEM No. | |||||||
| d | D | B | Minyak | Lemak | FSK | HOMO | NSK | NTN | KOYO | |
| 100 | 135 | 80 | 3500 | 4100 | FC202780 | |||||
| 100 | 140 | 70 | 3400 | 4000 | FC202870 | |||||
| 100 | 140 | 80 | 3400 | 4000 | FC202880 | |||||
| 100 | 145 | 70 | 3400 | 4000 | FC202970 | |||||
| 100 | 150 | 106 | 3400 | 4000 | FC2030106 | |||||
| 110 | 170 | 90 | 2800 | 3600 | FC223490 | 22FC1790 | ||||
| 110 | 170 | 120 | 2800 | 3600 | FC2234120 | 110RV1701 | ||||
| 110 | 180 | 92 | 2600 | 3400 | FC243692 | 4R2437 | ||||
| 110 | 180 | 105 | 2600 | 3400 | FC2436105 | 4R2438 | 4CR120 | |||
| 130 | 200 | 104 | 2400 | 3000 | FC2640104 | 4R2628 | 26FC20104 | |||
| 130 | 200 | 125 | 2400 | 3000 | FC2640125 | 130RV2001 | 26FC20125 | |||
| 140 | 190 | 119 | 2400 | 3000 | FC2838119 | 4R2832 | 28FC19119W | |||
| 140 | 210 | 80 | 2200 | 2800 | FC284280 | |||||
| 140 | 210 | 106 | 2200 | 2800 | FC2842106 | |||||
| 140 | 210 | 125 | 2200 | 2800 | FC2842125 | |||||
| 140 | 210 | 155 | 2200 | 2800 | FC2842155 | |||||
| 145 | 210 | 155 | 2200 | 2800 | FC2942155 | 314625 | 511605 | 145RV2101 | 4R2906 | 29FC21155 |
| 145 | 225 | 156 | 2000 | 2600 | FC2945156 | 313924A | 538522 | 145RV2201 | 4R2904 | 313924 |
| 150 | 200 | 120 | 2200 | 2800 | FC3040120 | 30FC20120 | ||||
| 150 | 210 | 120 | 2200 | 2800 | FC3042120 | |||||
| 150 | 210 | 120 | 2200 | 2800 | FCD3042120 | |||||
| 150 | 210 | 120 | 2200 | 2800 | FCD3042120 | 30FC21120 | ||||
| 150 | 210 | 150 | 2200 | 2800 | FC3042150 | 30FC21150 | ||||
| 150 | 220 | 120 | 2000 | 2600 | FC3044120 | |||||
| 150 | 220 | 127 | 2000 | 2600 | FC3044127 | 4R3036 | ||||
| 150 | 220 | 150 | 2000 | 2600 | FC3044150 | 30FC22150 | ||||
| 150 | 220 | 150 | 2000 | 2600 | FC3044150A | 150RV2201 | 4R3031 / 4R3056 | 30FC22150A | ||
| 150 | 225 | 112 | 2000 | 2600 | FCD3045112 | |||||
| 150 | 225 | 120 | 2000 | 2600 | FC3045120 | |||||
| 150 | 225 | 120 | 2000 | 2600 | FCD3045120 | |||||
| 150 | 225 | 150 | 2000 | 2600 | FC3045150 | |||||
| 150 | 225 | 150 | 2000 | 2600 | FC3045150A | 150RV2203 | ||||
| 150 | 225 | 136 | 2000 | 2600 | FC3045136 | 150RV2204 | ||||
| 150 | 230 | 130 | 2000 | 2600 | FC3046130 | 150RV2301 | 4R3029 | |||
| 150 | 230 | 156 | 2000 | 2600 | FC3046156 | 313891A | 506962 | 150RV2302 | 4R3040 | 313891-1 |
| 150 | 230 | 168 | 2000 | 2600 | FC3046168 | 4R3042 | ||||
| 150 | 250 | 120 | 2000 | 2600 | FC3050120 | |||||
| 150 | 250 | 150 | 2000 | 2600 | FC3050150 | 4R3039 | ||||
| 160 | 220 | 180 | 2000 | 2600 | FC3244180 | 4R3224 | 32FC22180 | |||
| 160 | 230 | 130 | 2000 | 2600 | FC3246130 | 314190 | 502894 | 4R3226 | 314190 | |
| 160 | 230 | 130 | 2000 | 2600 | FC3246130A | 160RV2301 | ||||
| 160 | 230 | 168 | 2000 | 2600 | FC3246168 | 315189A | 510150B | 4R3232 | 32FC23170B | |
| 160 | 230 | 168 | 2000 | 2600 | FC3246168A | 160RV2302 | 4R3229 | 32FC23170A | ||
| 160 | 230 | 168 | 2000 | 2600 | FC3246168A1 | 4R3231 | 32FC23170 | |||
| 160 | 230 | 180 | 2000 | 2600 | FC3246180 | 4R3228 | 32FC23180A | |||
| 160 | 230 | 180 | 2000 | 2600 | FC3246180A | 160RV2303 | ||||
| 160 | 240 | 120 | 1900 | 2400 | FC3248120 | 160RV2401 | 32FC24120W | |||
| 160 | 240 | 124 | 1900 | 2400 | FC3248124 | |||||
| 160 | 240 | 145 | 1900 | 2400 | FC3248145 | 160RV2403 | ||||
| 160 | 240 | 168 | 1900 | 2400 | FC3248168 | |||||
| 160 | 240 | 168 | 1900 | 2400 | FCD3248168 | |||||
| 160 | 240 | 170 | 1900 | 2400 | FC3248170 | 160RV2402 | 4R3225 | 32FC24170 | ||
| 170 | 230 | 120 | 1900 | 2400 | FC3446120 | 170RV2301 | 4R3426 / 4R3443 | 34FC23120 | ||
| 170 | 230 | 130 | 1900 | 2400 | FC3446130 | 313673 | 508370 | |||
| 170 | 230 | 160 | 1900 | 2400 | FCD3446160 | 567622 | ||||
| 170 | 230 | 180 | 1900 | 2400 | FC3446180 | |||||
| 170 | 240 | 130 | 1800 | 2300 | FC3448130 | BC4B635122 | 510440B | |||
| 170 | 240 | 156 | 1900 | 2400 | FC3448156 | 4R3429 | 34FC24156B | |||
| 170 | 240 | 156 | 1900 | 2400 | FC3448156A | 34FC24156A | ||||
| 170 | 240 | 160 | 1900 | 2400 | FC3448160 | 170RV2402 | 4R3423 | |||
| 170 | 240 | 190 | 1900 | 2400 | FC3448190 | 34FC24190 | ||||
| 170 | 250 | 168 | 1800 | 2200 | FC3450168 | 170RV2501 | 34FC25168 | |||
| 170 | 250 | 168 | 1800 | 2200 | FC3450168A | 4R3432 / 4R3428 | ||||
| 170 | 250 | 170 | 1800 | 2200 | FC3450170 | 170RV2502 | 34FC25170 | |||
| 170 | 255 | 180 | 1800 | 2200 | FC3451180 | 170RV2503 | 4R3425 | |||
| 170 | 260 | 120 | 1800 | 2200 | FC3452120 | |||||
| 170 | 260 | 150 | 1800 | 2200 | FC3452150 | 170RV2602 | 34FC26150 | |||
| 170 | 260 | 150 | 1800 | 2200 | FC3452150A | 4R3433 | ||||
| 170 | 260 | 170 | 1800 | 2200 | FC3452170 | |||||
| 170 | 260 | 225 | 1800 | 2200 | FC3452225 | 313587B | 505470 | 4R3431 | ||
| 180 | 250 | 100 | 1800 | 2200 | FCD3650100 | |||||
| 180 | 250 | 120 | 1800 | 2200 | FC3650120 | |||||
| 180 | 250 | 156 | 1800 | 2200 | FC3650156 | 180RV2501 | 4R3625 | 36FC25156A | ||
| 180 | 250 | 168 | 1800 | 2200 | FC3650168 | 180RV2601 | 4R3639 | 313812W / 36 FC26168 | ||
| 180 | 260 | 120 | 1800 | 2200 | FC3652120 | |||||
| 180 | 260 | 124 | 1800 | 2200 | FC3652124 | |||||
| 180 | 260 | 168 | 1800 | 2200 | FC3652168 | 313812 | 507536 | 180RV2601 | 4R3628 | 313812W |
| 180 | 260 | 168 | 1800 | 2200 | FCD3652168 | |||||
| 180 | 265 | 180 | 1800 | 2200 | FC3653180 | 180RV2602 | 4R3618 | |||
| 180 | 265 | 180 | 1800 | 2200 | FC3653180A | 180RV2603 | 36FC27180 | |||
| 180 | 280 | 180 | 1700 | 2000 | FC3656180 | 524372 | ||||
| 180 | 280 | 180 | 1700 | 2000 | FC3645180A | 180RV2802 | ||||
| 190 | 260 | 124 | 1700 | 2000 | FC3852124 | |||||
| 190 | 260 | 124 | 1700 | 2000 | FC3852124A | |||||
| 190 | 260 | 168 | 1700 | 2000 | FC3852168 | 313651 | 507735 | 190RV2601 | 4R3820 | 38FC26168-1 |
| 190 | 260 | 168 | 1700 | 2000 | FC3852168A | |||||
| 190 | 265 | 124 | 1700 | 2000 | FC3853124 | |||||
| 190 | 270 | 168 | 1700 | 2000 | FC3854168 | |||||
| 190 | 270 | 170 | 1700 | 2000 | FC3854170 | 190RV2703 | 38FC27170 | |||
| 190 | 270 | 170 | 1700 | 2000 | FC3854170A | 190RV2702 | 4R3818 | 38FC27170A | ||
| 190 | 270 | 200 | 1700 | 2000 | FC3854200 | 314199B | 508657 | 190RV2701 | 4R3821 / 4R3817 | 314199 |
| 190 | 280 | 200 | 1700 | 2000 | FC3856200 | 314049A | 510199 | 190RV2801 | 4R3823 / 4R3830 | 38FC28200 |
| 190 | 280 | 200 | 1700 | 2000 | FC3856200A | 313583 | ||||
| 190 | 290 | 190 | 1700 | 2000 | FC3858190 | 38FC29190 | ||||
| 200 | 250 | 200 | 1700 | 2000 | FC4050200 | 200RV2521 | ||||
| 200 | 270 | 170 | 1600 | 1900 | FC4054170 | 314553 | 522742B | 4R4039 | 314553 | |
| 200 | 280 | 152 | 1600 | 1900 | FC4056152 | 4R4054 | 40FC28152 BW | |||
| 200 | 280 | 170 | 1600 | 1900 | FC4056170 | 314385 | 507344 | 4R4048 | 40FC28170 | |
| 200 | 280 | 170 | 1600 | 1900 | FC4056170A | 549864 | 200RV2804 | |||
| 200 | 280 | 188 | 1600 | 1900 | FC4056188 | 40FC28188 | ||||
Produk Penjualan Panas Kami Lainnya
1. deep groove ball bearing 6000,6200,6300,6400,61800,61900, Z, RS, ZZ, 2RS
2. bantalan rol bulat 22200,22300,23000,24000,23100,24100, CA, CC, E, W33
3. bantalan rol silinderN, NU, NJ, NN, NUP, E, ECP, ECM, ECJ
4. bantalan rol tirus 30200,30300,32200,32300,31300,32000
5. Menyelaraskan bantalan bola 1200,1300,2200,2300,
6. bantalan rol jarum NA, NAV, NK, NKI, RNA, NK, RNAV, ZKLF, ZKLN, ZARF, ZARN
7. dorong bantalan bola 51100,51200,51300,51400, E, M
8. bantalan bola kontak sudut7000,7100,7200,7300, AC, BECBM, C
9. bola polos bantalan GE, GEG, GEEW, U, UC, UG, GX, GAC, SA, SABP
