Rincian Produk
Tempat asal: Cina
Nama merek: FAG / NSK / KOYO / NTN / NAHCI / FSK / OEM
Sertifikasi: ISO9001-2000 / SGS / BV / CE / IAF
Nomor model: 315189 A
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 1 pcs-5pcs
Harga: 0.1-200USD
Kemasan rincian: 1) COLORED SINGLE BOX PACKING + KOTAK KARTON PACKING + PALLETS, 2) PLASTIK TABUNG PACKING / KRAFT PA
Waktu pengiriman: 3-7 Hari Setelah Deposit
Syarat-syarat pembayaran: Deposit 30%, Saldo Setelah BL Copy
Menyediakan kemampuan: 100000pcs/bulan
Model No: |
315189A |
Ukuran: |
160mm × 230mm × 168mm |
Berat badan: |
23,5kg |
Baris: |
Empat baris |
kandang: |
Kuningan kandang |
Bahan: |
Baja Chrome |
Model No: |
315189A |
Ukuran: |
160mm × 230mm × 168mm |
Berat badan: |
23,5kg |
Baris: |
Empat baris |
kandang: |
Kuningan kandang |
Bahan: |
Baja Chrome |
Kuningan Cage 315189A, 510150B, 4R3232 Rolling Mill Bearings Four Row
315189A Bearing Sp e cification:
| Nomor model | 315189 A |
| Bagian nama | Bantalan Rol Silinder |
| Merek | FAG / NSK / KOYO / NTN / NAHCI / FSK / OEM |
| Peringkat presisi | ABEC-3 / ABEC-5 |
| Baris | Empat baris |
| Dimensi (mm) (d * D * b) | 160mm × 230mm × 168mm |
| Berat / Massa (KG) | 23,5kg |
| Kode HS | 8482500000 |
| Tampilkan Negara Asli | CHINA (FSK) |

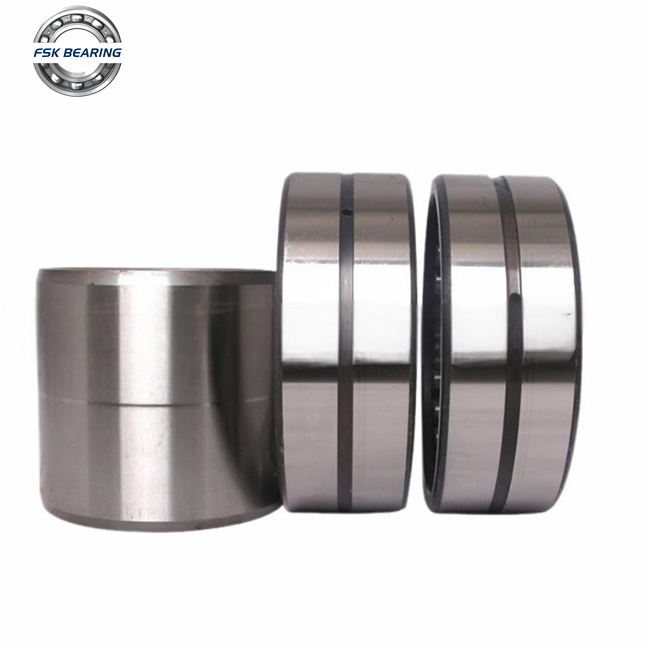

Gambar rinci bantalan:
Bagian Empat Baris Daftar Bantalan Rol Silinder
| Spesifikasi (mm) | Bantalan no. | Massa | OEM No. | ||||||
| d | D | B | kg | HOMO | NSK | NTN | KOYO | ||
| 100 | 135 | 80 | FC202780 | 3.2 | |||||
| 100 | 140 | 70 | FC202870 | 3.2 | |||||
| 100 | 140 | 80 | FC202880 | 3.5 | |||||
| 100 | 145 | 70 | FC202970 | 3.61 | |||||
| 100 | 150 | 106 | FC2030106 | 6.43 | |||||
| 110 | 170 | 90 | FC223490 | 7.3 | 22FC1790 | ||||
| 110 | 170 | 120 | FC2234120 | 9.9 | 110RV1701 | ||||
| 110 | 180 | 92 | FC243692 | 7.79 | 4R2437 | ||||
| 110 | 180 | 105 | FC2436105 | 9 | 4R2438 | 4CR120 | |||
| 130 | 200 | 104 | FC2640104 | 11.5 | 4R2628 | 26FC20104 | |||
| 130 | 200 | 125 | FC2640125 | 14.2 | 130RV2001 | 26FC20125 | |||
| 140 | 190 | 119 | FC2838119 | 9.5 | 4R2832 | 28FC19119W | |||
| 140 | 210 | 80 | FC284280 | 9.4 | |||||
| 140 | 210 | 106 | FC2842106 | 12.6 | |||||
| 140 | 210 | 125 | FC2842125 | 14.9 | |||||
| 140 | 210 | 155 | FC2842155 | 18.7 | |||||
| 145 | 210 | 155 | FC2942155 | 18.4 | 314625 | 511605 | 145RV2101 | 4R2906 | 29FC21155 |
| 145 | 225 | 156 | FC2945156 | 22.2 | 313924A | 538522 | 145RV2201 | 4R2904 | 313924 |
| 150 | 200 | 120 | FC3040120 | 10.1 | 30FC20120 | ||||
| 150 | 210 | 120 | FC3042120 | 12.7 | |||||
| 150 | 210 | 120 | FCD3042120 | 12.7 | |||||
| 150 | 210 | 120 | FCD3042120 | 12.8 | 30FC21120 | ||||
| 150 | 210 | 150 | FC3042150 | 15.9 | 30FC21150 | ||||
| 150 | 220 | 120 | FC3044120 | 14.5 | |||||
| 150 | 220 | 127 | FC3044127 | 15.7 | 4R3036 | ||||
| 150 | 220 | 150 | FC3044150 | 19.2 | 30FC22150 | ||||
| 150 | 220 | 150 | FC3044150A | 19.4 | 150RV2201 | 4R3031 / 4R3056 | 30FC 22150A | ||
| 150 | 225 | 112 | FCD3045112 | 15.3 | |||||
| 150 | 225 | 120 | FC3045120 | 16.1 | |||||
| 150 | 225 | 120 | FCD3045120 | 16.1 | |||||
| 150 | 225 | 150 | FC3045150 | 20.4 | |||||
| 150 | 225 | 150 | FC3045150A | 20.8 | 150RV2203 | ||||
| 150 | 225 | 136 | FC3045136 | 18.6 | 150RV2204 | ||||
| 150 | 230 | 130 | FC3046130 | 20 | 150RV2301 | 4R3029 | |||
| 150 | 230 | 156 | FC3046156 | 23.5 | 313891A | 506962 | 150RV2302 | 4R3040 | 313891-1 |
| 150 | 230 | 168 | FC3046168 | 25.8 | 4R3042 | ||||
| 150 | 250 | 120 | FC3050120 | 24.3 | |||||
| 150 | 250 | 150 | FC3050150 | 29.6 | 4R3039 | ||||
| 160 | 220 | 180 | FC3244180 | 20.2 | 4R3224 | 32FC22180 | |||
| 160 | 230 | 130 | FC3246130 | 16.8 | 314190 | 502894 | 4R3226 | 314190 | |
| 160 | 230 | 130 | FC3246130A | 16.4 | 160RV2301 | ||||
| 160 | 230 | 168 | FC3246168 | 22.1 | 315189A | 510150B | 4R3232 | 32FC23170B | |
| 160 | 230 | 168 | FC3246168A | 23.2 | 160RV2302 | 4R3229 | 32FC23170A | ||
| 160 | 230 | 168 | FC3246168A1 | 23.2 | 4R3231 | 32FC23170 | |||
| 160 | 230 | 180 | FC3246180 | 24.8 | 4R3228 | 32FC23180A | |||
| 160 | 230 | 180 | FC3246180A | 24.2 | 160RV2303 | ||||
| 160 | 240 | 120 | FC3248120 | 18.8 | 160RV2401 | 32FC24120W | |||
| 160 | 240 | 124 | FC3248124 | 19 | |||||
| 160 | 240 | 145 | FC3248145 | 22.3 | 160RV2403 | ||||
| 160 | 240 | 168 | FC3248168 | 26.1 | |||||
| 160 | 240 | 168 | FCD3248168 | 26.1 | |||||
| 160 | 240 | 170 | FC3248170 | 27.8 | 160RV2402 | 4R3225 | 32FC24170 | ||
| 170 | 230 | 120 | FC3446120 | 14.2 | 170RV2301 | 4R3426 / 4R3443 | 34FC23120 | ||
| 170 | 230 | 130 | FC3446130 | 15.2 | 313673 | 508370 | |||
| 170 | 230 | 160 | FCD3446160 | 18.9 | 567622 | ||||
| 170 | 230 | 180 | FC3446180 | 21.1 | |||||
| 170 | 240 | 130 | FC3448130 | 18.3 | BC4B635122 | 510440B | |||
| 170 | 240 | 156 | FC3448156 | 22.2 | 4R3429 | 34FC24156B | |||
| 170 | 240 | 156 | FC3448156A | 22.4 | 34FC24156A | ||||
| 170 | 240 | 160 | FC3448160 | 22.8 | 170RV2402 | 4R3423 | |||
| 170 | 240 | 190 | FC3448190 | 26.9 | 34FC24190 | ||||
| 170 | 250 | 168 | FC3450168 | 27.4 | 170RV2501 | 34FC25168 | |||
| 170 | 250 | 168 | FC3450168A | 28.2 | 4R3432 / 4R3428 | ||||
| 170 | 250 | 170 | FC3450170 | 27.9 | 170RV2502 | 34FC25170 | |||
| 170 | 255 | 180 | FC3451180 | 19.3 | 170RV2503 | 4R3425 | |||
| 170 | 260 | 120 | FC3452120 | 22.8 | |||||
| 170 | 260 | 150 | FC3452150 | 28.2 | 170RV2602 | 34FC26150 | |||
| 170 | 260 | 150 | FC3452150A | 29.5 | 4R3433 | ||||
| 170 | 260 | 170 | FC3452170 | 31.6 | |||||
| 170 | 260 | 225 | FC3452225 | 43.2 | 313587B | 505470 | 4R3431 | ||
| 180 | 250 | 100 | FCD3650100 | 14.7 | |||||
| 180 | 250 | 120 | FC3650120 | 17.7 | |||||
| 180 | 250 | 156 | FC3650156 | 22.8 | 180RV2501 | 4R3625 | 36FC25156A | ||
| 180 | 250 | 168 | FC3650168 | 25.6 | 180RV2601 | 4R3639 | 313812W / 36 FC26168 | ||
| 180 | 260 | 120 | FC3652120 | 20.2 | |||||
| 180 | 260 | 124 | FC3652124 | 21 | |||||
| 180 | 260 | 168 | FC3652168 | 29.2 | 313812 | 507536 | 180RV2601 | 4R3628 | 313812W |
| 180 | 260 | 168 | FCD3652168 | 29.2 | |||||
| 180 | 265 | 180 | FC3653180 | 34.2 | 180RV2602 | 4R3618 | |||
| 180 | 265 | 180 | FC3653180A | 33.4 | 180RV2603 | 36FC27180 | |||
| 180 | 280 | 180 | FC3656180 | 41 | 524372 | ||||
| 180 | 280 | 180 | FC3645180A | 40.9 | 180RV2802 | ||||
| 190 | 260 | 124 | FC3852124 | 19.1 | |||||
| 190 | 260 | 124 | FC3852124A | 20.6 | |||||
| 190 | 260 | 168 | FC3852168 | 27.2 | 313651 | 507735 | 190RV2601 | 4R3820 | 38FC26168-1 |
| 190 | 260 | 168 | FC3852168A | 25.7 | |||||
| 190 | 265 | 124 | FC3853124 | 20.8 | |||||
| 190 | 270 | 168 | FC3854168 | 30 | |||||
| 190 | 270 | 170 | FC3854170 | 30.5 | 190RV2703 | 38FC27170 | |||
| 190 | 270 | 170 | FC3854170A | 31.7 | 190RV2702 | 4R3818 | 38FC27170A | ||
| 190 | 270 | 200 | FC3854200 | 36.8 | 314199B | 508657 | 190RV2701 | 4R3821 / 4R3817 | 314199 |
| 190 | 280 | 200 | FC3856200 | 42.1 | 314049A | 510199 | 190RV2801 | 4R3823 / 4R3830 | 38FC28200 |
| 190 | 280 | 200 | FC3856200A | 42.1 | 313583 | ||||
| 190 | 290 | 190 | FC3858190 | 44.9 | 38FC29190 | ||||
| 200 | 250 | 200 | FC4050200 | 22.3 | 200RV2521 | ||||
| 200 | 270 | 170 | FC4054170 | 28.3 | 314553 | 522742B | 4R4039 | 314553 | |
| 200 | 280 | 152 | FC4056152 | 29.5 | 4R4054 | 40FC28152BW | |||
| 200 | 280 | 170 | FC4056170 | 32.7 | 314385 | 507344 | 4R4048 | 40FC28170 | |
| 200 | 280 | 170 | FC4056170A | 33.7 | 549864 | 200RV2804 | |||
| 200 | 280 | 188 | FC4056188 | 35.3 | 40FC28188 | ||||
Faq
1. berapa banyak MOQ dari perusahaan Anda?
MOQ perusahaan kami adalah 1 pcs.
2. Bisakah Anda menerima OEM dan menyesuaikan?
YA, OEM diterima dan kami dapat menyesuaikan untuk Anda sesuai dengan sampel atau gambar.
3. bagaimana dengan sudut?
Dalam persediaan, ada yang putih, dan ada yang hitam.
Tapi kita bisa memproses sudut putih menjadi hitam, juga hitam menjadi putih.
4. Apakah Anda memiliki stok?
Ya, kami memiliki sebagian besar bantalan menunjukkan pada Alibaba dalam stok, terutama bantalan besar.
5. Apakah Anda hanya memiliki bantalan besar?
Kami memiliki bantalan besar, sedang dan kecil dalam stok. Namun bantalan besar adalah keuntungannya
produk kami dibandingkan dengan perusahaan lain.
Tentang Sertifikasi Kami
Brass Cage 315189A, 510150B, 4R3232 Rolling Mill Bearings Four Row, Dapatkan Harga murah dari China Bearing Factory Now!
